Smart Videohub 20 x 20

Smart Videohub 20 x 20 is a larger advanced Ultra HD mixed format router with built in control panel and monitoring. Ideal for larger workgroups and mobile broadcasting, it includes advanced 6G-SDI connections so you can simultaneously connect and route any combination of SD, HD and Ultra HD video all on the same router at the same time. You also get revolutionary new visual routing with the unique spin knob control, push button panel and the built in LCD screen. Also includes Ethernet for remote control and a fully customizable software development kit for Mac and Windows.

Connections


SDI Video Input


20 x 10 bit SD-SDI, HD-SDI and 6G-SDI.

SDI Video Output


20 x 10 bit SD-SDI, HD-SDI and 6G-SDI.

Reference Input


Blackburst and TriSync for SD, HD and 4K.

Muti Rate Support


Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.

Updates


USB 2.0 high speed (480Mb/s) interface or via Ethernet.

Router Control


21 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.

Router Configuration


Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for setting IP address only.

RS-422 Router Control


1 x input for controlling router crosspoint switching.

Reclocking


On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.



Standards



SD Format Support


625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC.

HD Format Support


720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.

2K Format Support


2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25.

4K Format Support


3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24.

SDI Compliance


SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.

SDI Video rates


SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI.

SDI Video Sampling


4:2:2 and 4:4:4

SDI Audio Sampling


Television standard sample rate of 48kHz and 24 bit.

SDI Color Precision


4:2:2 and 4:4:4 10 bit.

SDI Color Space


YUV or RGB.

SDI Auto Switching


Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard.

SDI Metadata Support


Video payload identification ancillary data as per SMPTE 352M.

Software



Software Control


Router control included free for Windows™ and Mac OS X™.

Internal Software Upgrade


Via included updater application.

Physical Installation


Physical Installation

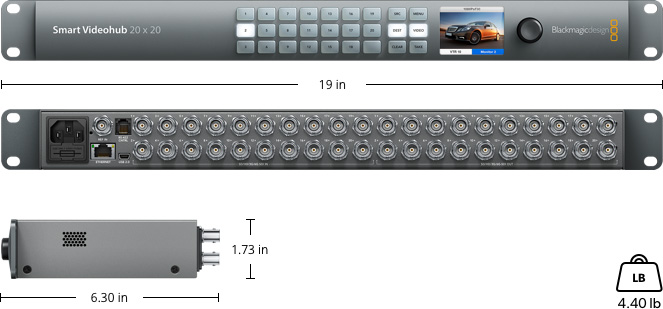

1 rack unit size. Less than 6 inches deep.

Physical Specifications




Environmental Specifications


Operating Temperature


0° to 40° C (32° to 104° F)

Storage Temperature


-20° to 45° C (-4° to 113° F)

Relative Humidity


0% to 90% non-condensing

What's Included


Smart Videohub 20 x 20
Software CD

Warranty


Product Warranty


12 Month Limited Manufacturer's Warranty.
